Specialist for Supplying Quality Bridge Bearings

Bridge Bearings in Various Types

Some bridge bearings are placed between superstructure and bridge piers.

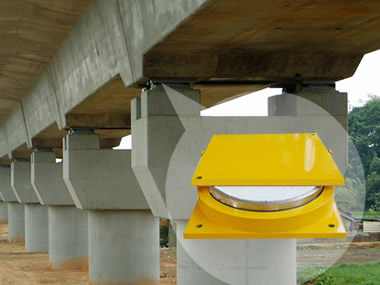

Bridge bearings placed between superstructure and bridge piers.

A bridge bearing is a product widely used in bridge construction to provide excellent absorption and transfer of external forces from the superstructure to the foundations. Meanwhile, it allows for stable rotations in any axis and horizontal sliding movements to reduce the forces upon bridges and buildings. Bridge bearings are not only used in bridge construction, but also can be applied to highways, roads, docks, airports, buildings and other applications where large and heavy objects need to operate safely.

Different bridge bearings have different appearances, but all of them are in small size, which means they are smaller than bridge deck sometimes even the piers they sit on. Taking advantages of the small size, all forces converge on a small point and to be transferred to the foundation through a very compact line. In this way, it effectively decreases the shearing force and provide higher security during the transference.

Types of bridge bearing

There are ten main types of bridges bearings are supplied to meet your different needs. Some specific designs are also available as your request.

  • Laminated elastomeric bearing is manufactured through the process of vulcanization and moulding to form a homogeneous unit with layers of steel plated embedded in. Comparing with plain elastomeric bearing, this one has higher vertical load capacity, excellent vibration and sound isolation. It is ideal for bridges with short span and flyovers, etc.
  • PTFE top elastomeric bearing, a variation of traditional laminated elastomeric bearing, features a layer of PTFE bonded to top surface of the bearing. In conjunction with lubricant in the dimples of PTFE, the bearing allows for excellent sliding movements with reduced friction coefficient.
  • Elastomeric bearing with steel plate is reinforced with outer steel plates vulcanized directly onto the surface of rubber pad. It can be manufactured with holes or pins for easy fastening. They are ideal for in-situ concrete structure, metal structures and anti-life device, etc. To suit your scheme, six types can be provided by our company.
  • Plain elastomeric bearing with the simplest structure among all bearing products is exclusively manufactured from natural rubber or neoprene rubber. It is considered to be a low cost choice for short span bridges, prefabricated structures, buildings as well as flyovers, etc.
  • Pot bearing, is the widest used type designed for structures using the incremental launching methods, highways and railways, etc. PTFE top elastomeric bearing is fitted in the steel pot plate to ease the sliding movements with the help of a stainless steel panel welded on top steel plate.
  • Spherical bridge bearing features its precision-machined steel plates with concave ad convex surfaces. And it can accommodate large movements and rotations in excess of +/- 0.03 radians. Spherical bridge bearings can be applied to structures with large turning angles, wide and curved bridges regardless of low temperatures even under -30℃.
  • Lead rubber bearing, as its name implies, has a lead plug in the middle of the bearing that will assist the bearing to absorb earthquake-generated forces, extending the structure vibration period. In this way, lead rubber bearings protect buildings or structures from damages and severe deformations caused by earthquake.
  • High damping rubber bearing, manufactured from quality rubber with great damping ability and high durability, is also a seismic isolator similar to lead rubber bearing without the central lead plug.
Products List
Laminated Elastomeric Bearing

Laminated elastomeric bearings with reinforced steel plates have higher longitudinal and compression strength and allow for rotations in any axis.

PTFE Top Elastomeric Bearing

PTFE top elastomeric bearings utilize sliding surface and lubricant to reduce sliding resistance and it is suitable for bridges with large spans, etc.

Lead Rubber Bearing

Lead rubber bearings feature central lead plug, are widest used for building or bridges to proof earthquake and avoid deformation and damage to the building.

High Damping Rubber Bearing

High damping rubber bearing, made of quality rubber with damping ability and laminated layers of steel, is used as a seismic isolator of building or bridges.

Why choose us?

Choose UsQuality products
We select the best rubber, steel and stainless steel as our raw materials for manufacture of bridge bearing, and all of the products are through strict quality test to ensure our products will meet even exceed the customers' expectation.
Choose UsInternational standards
Our products are manufactured in accordance with all of the international standards, including BS EN1337, AASHO, KS4424, ISO, etc. Bridge bearing complying with custom standards can also be supplied by our company.
Choose UsExcellent corrosion protection
Steel components exposed to the air are corrosion protected through a series of treatments, such as sandblast treatment, galvanization, epoxy painting or other custom coatings.
Choose UsComprehensive labelling
All bearings are enclosed with labels about detail properties of products including bearing type, maximum horizontal & vertical loads, rotation & movements directions, date of manufacture or others as your requests.
